• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl

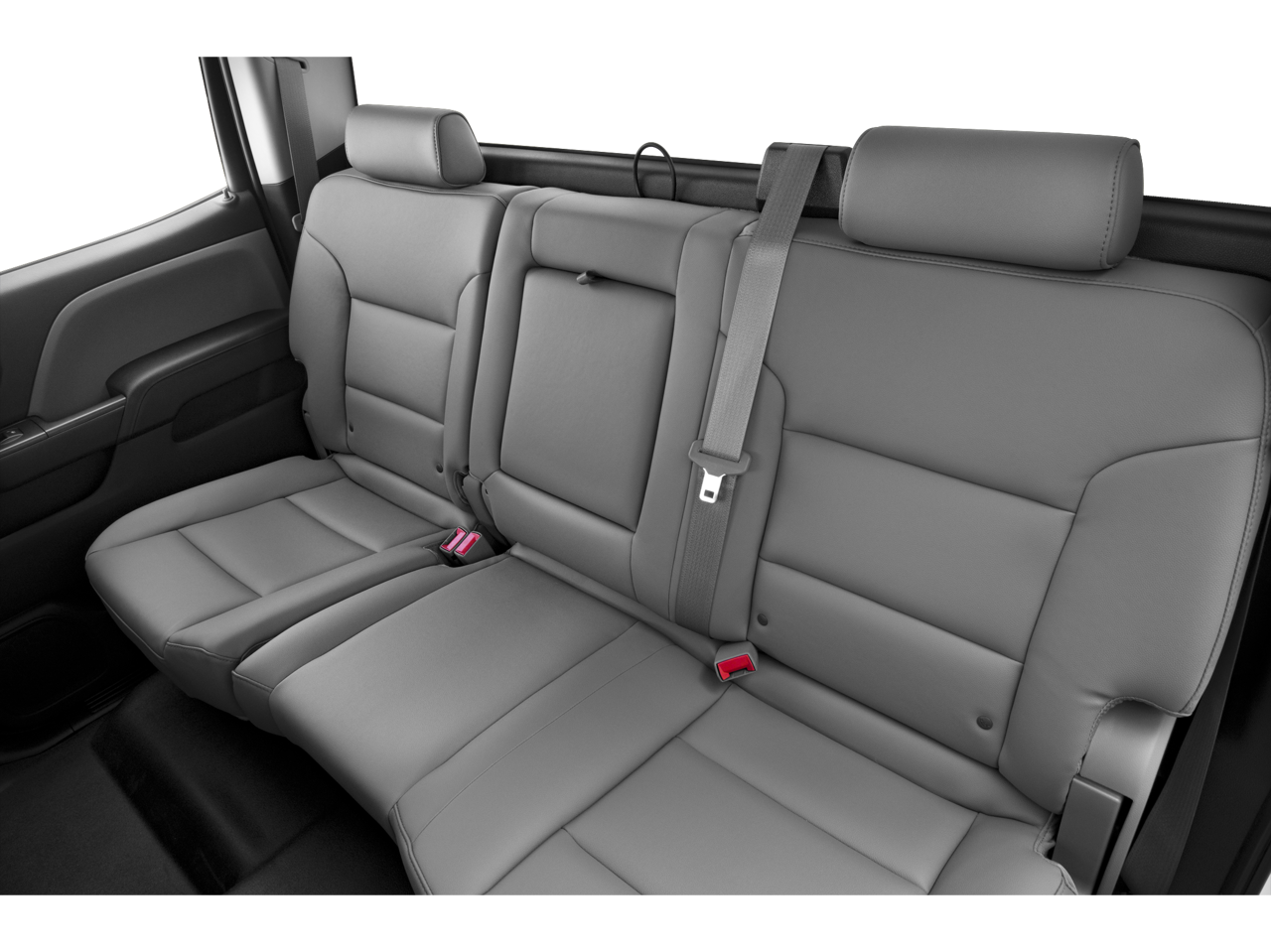

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)

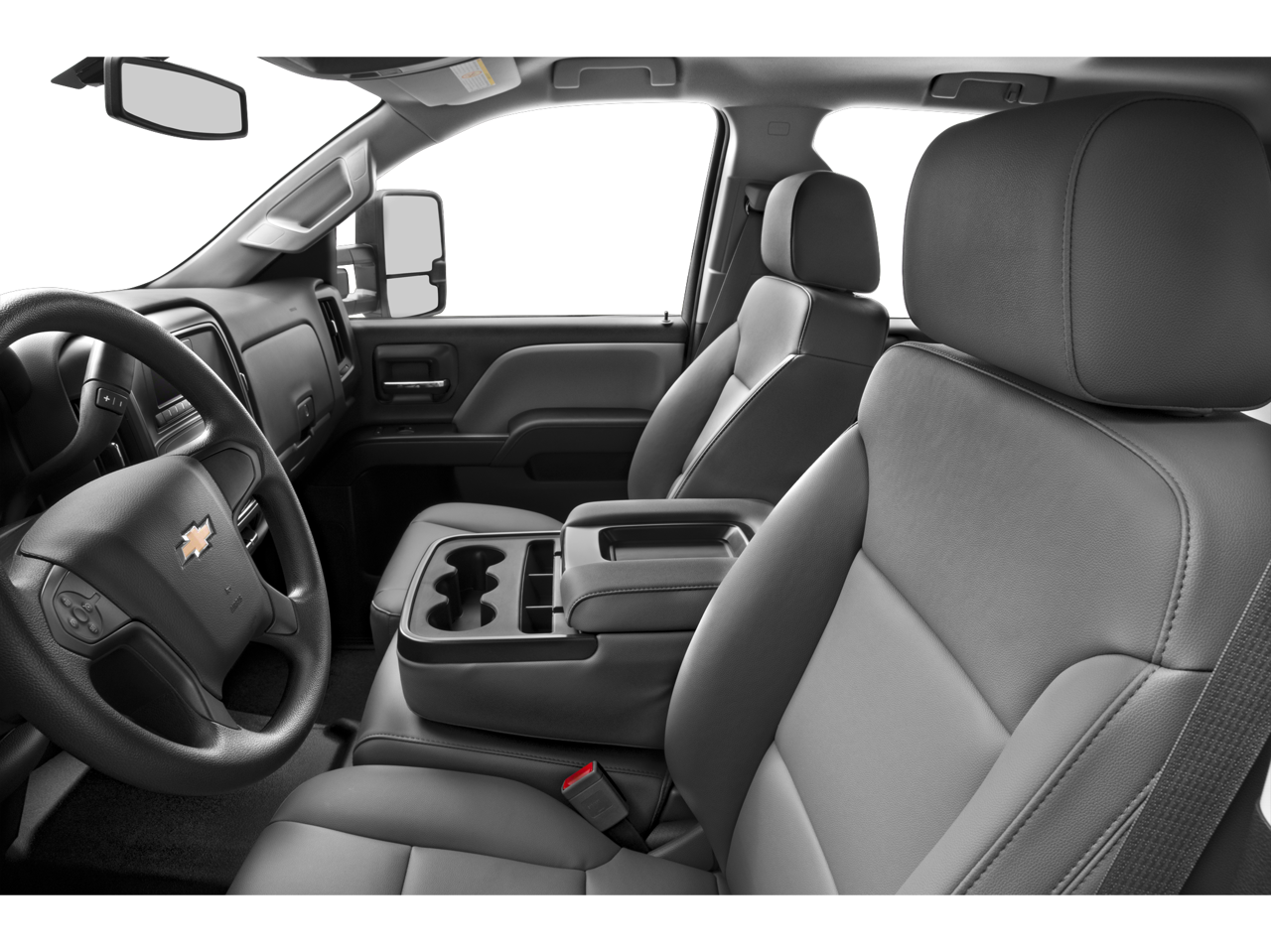

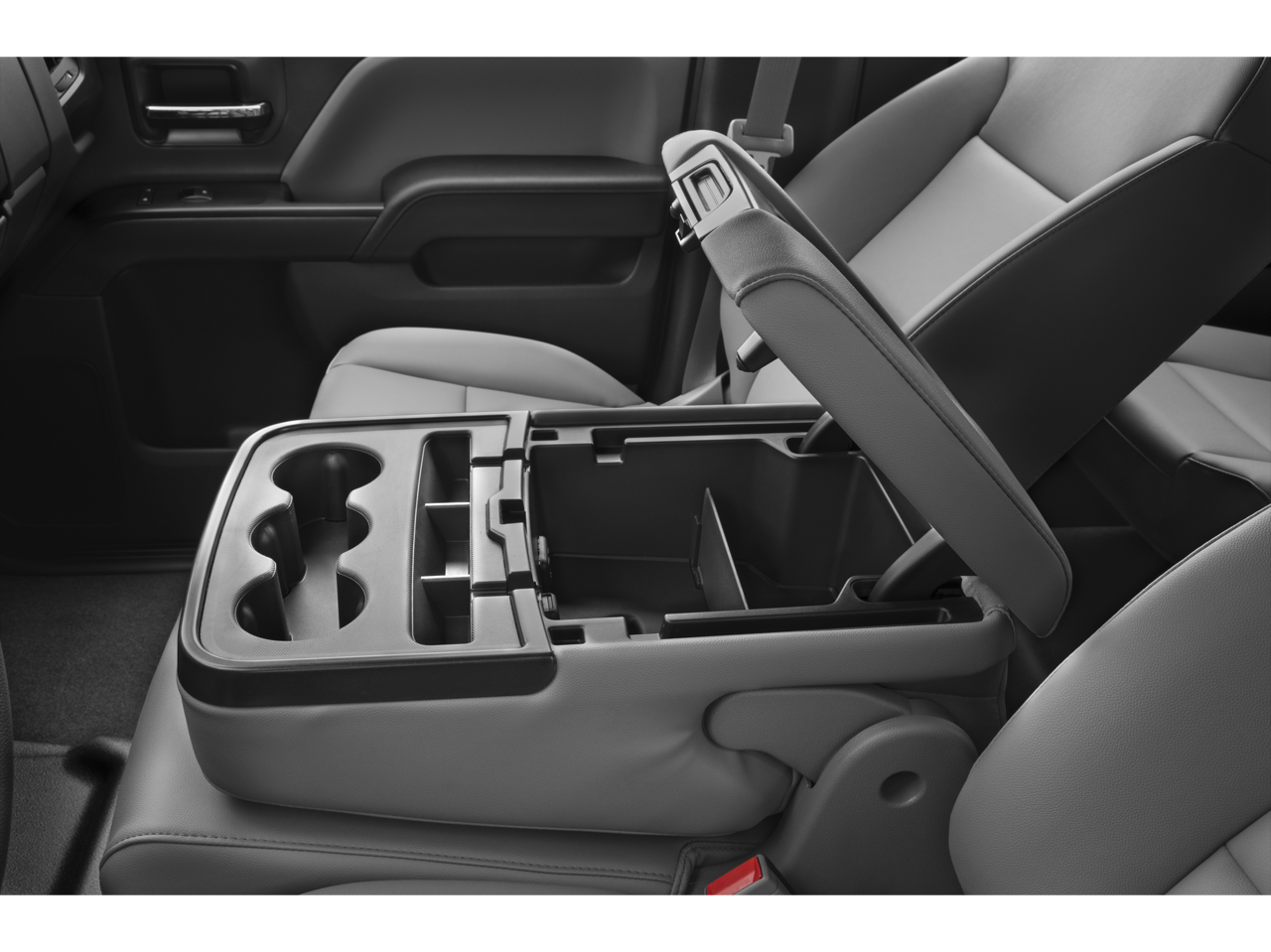

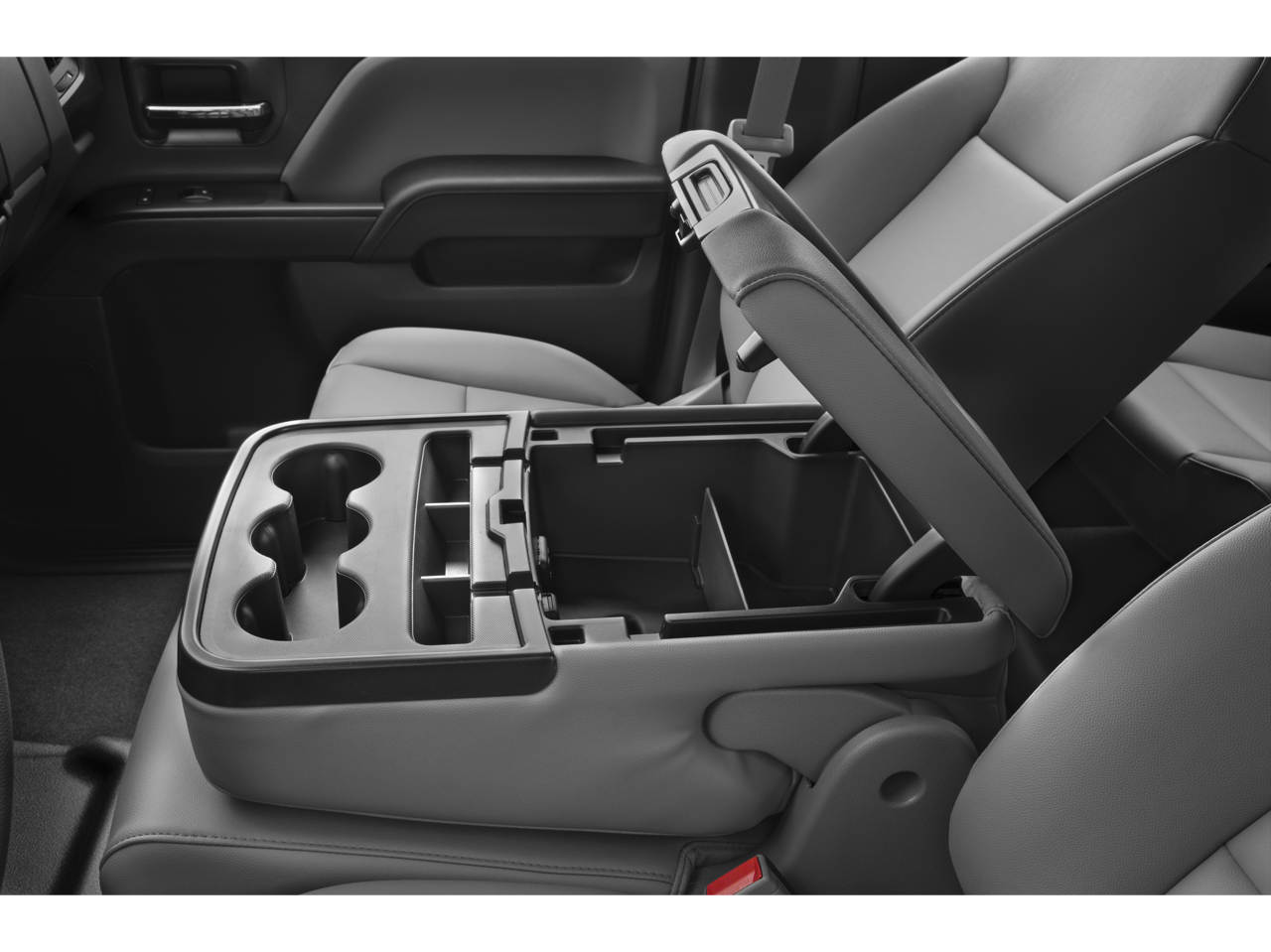

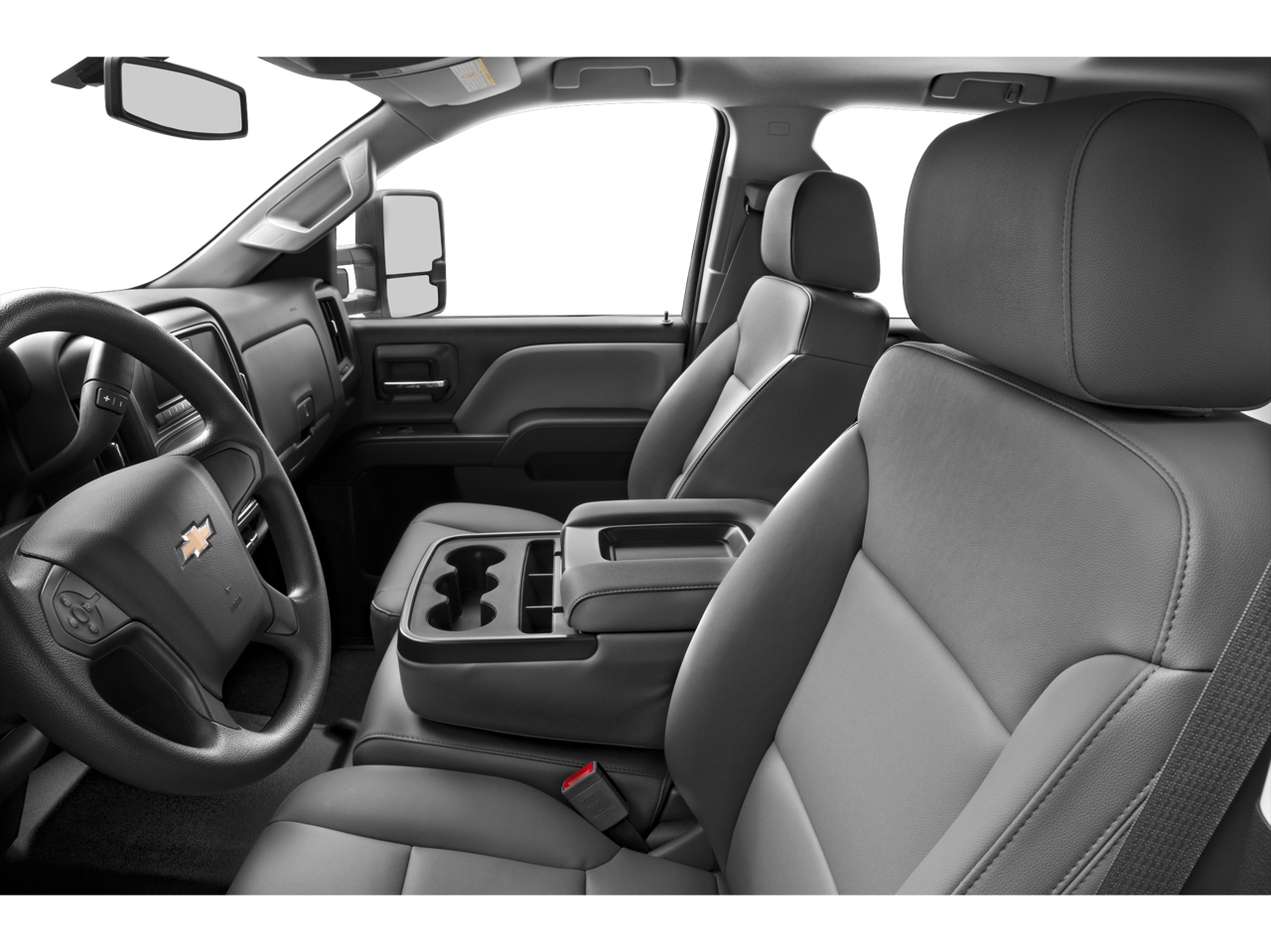

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (Upgradeable to (AZ3) front 40/20/40 split-bench seat.)

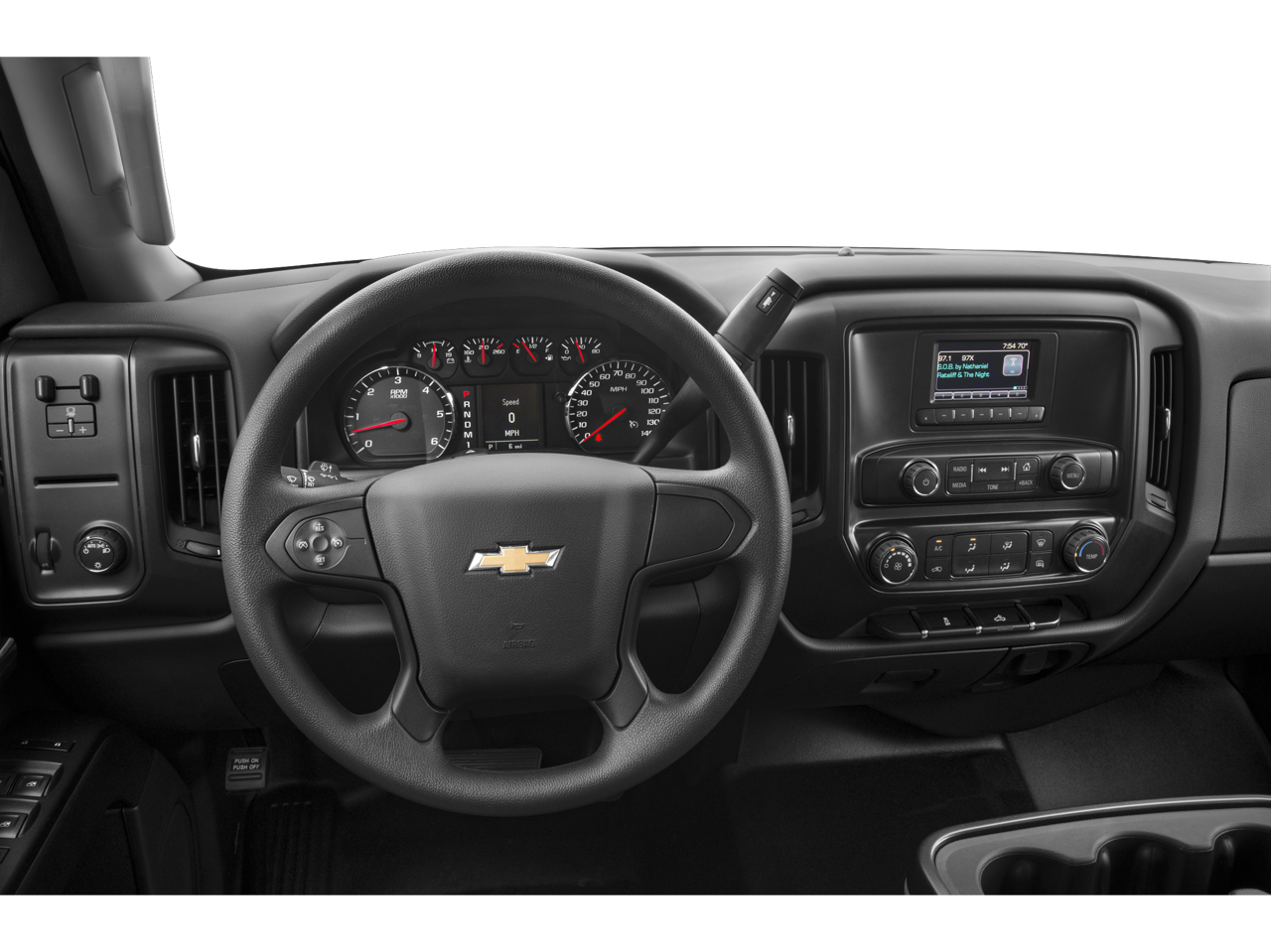

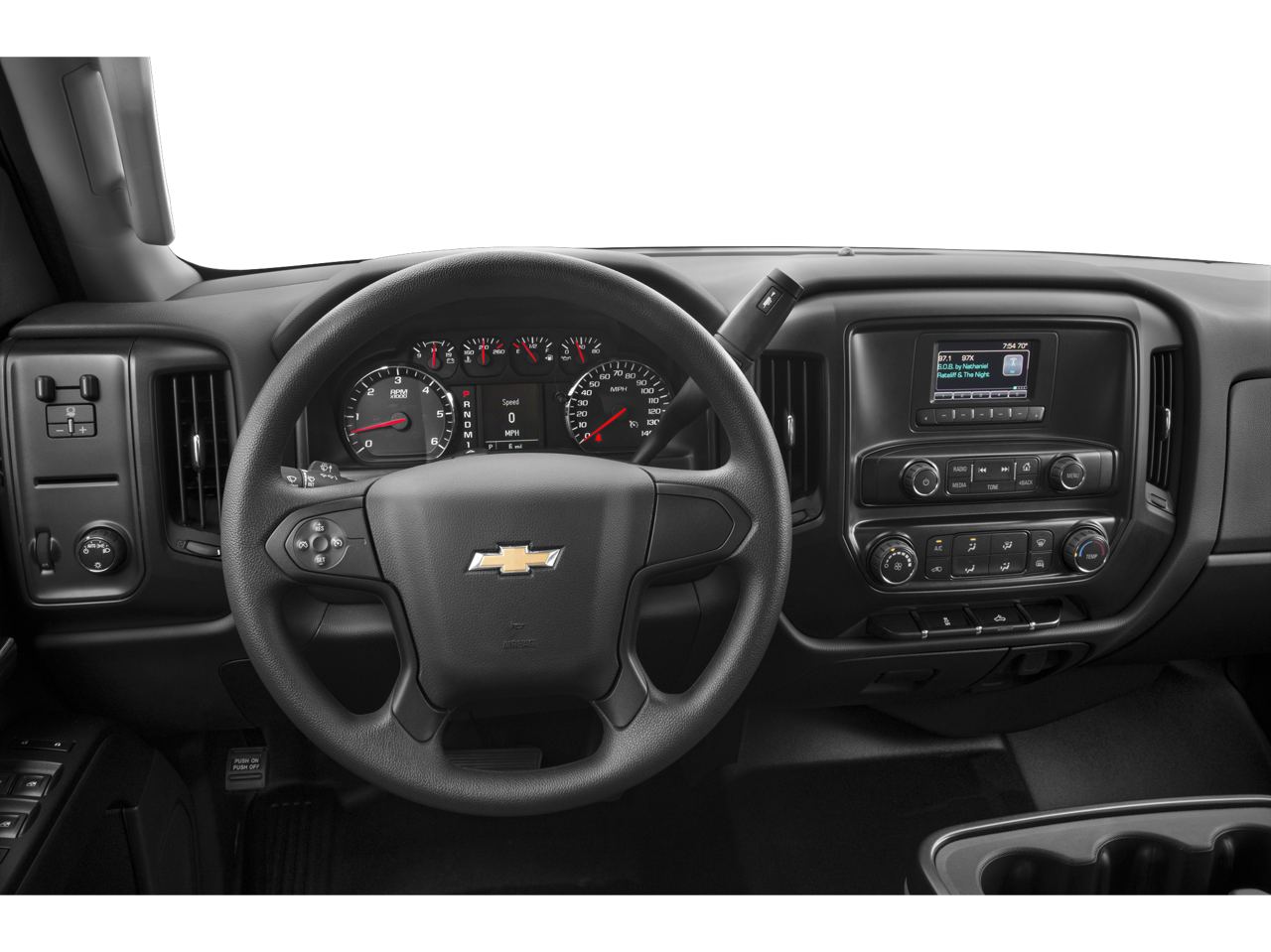

• Steering column, manual Tilt-Wheel
• Steering wheel
• Windows, power with driver express up and down and express down on all other windows
• XM Satellite Radio, delete

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, fully-boxed, hydroformed front section
• Pickup box, Wideside
• Rear wheel drive
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating Ball
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar

• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar, delete also deletes driver information center compass.
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

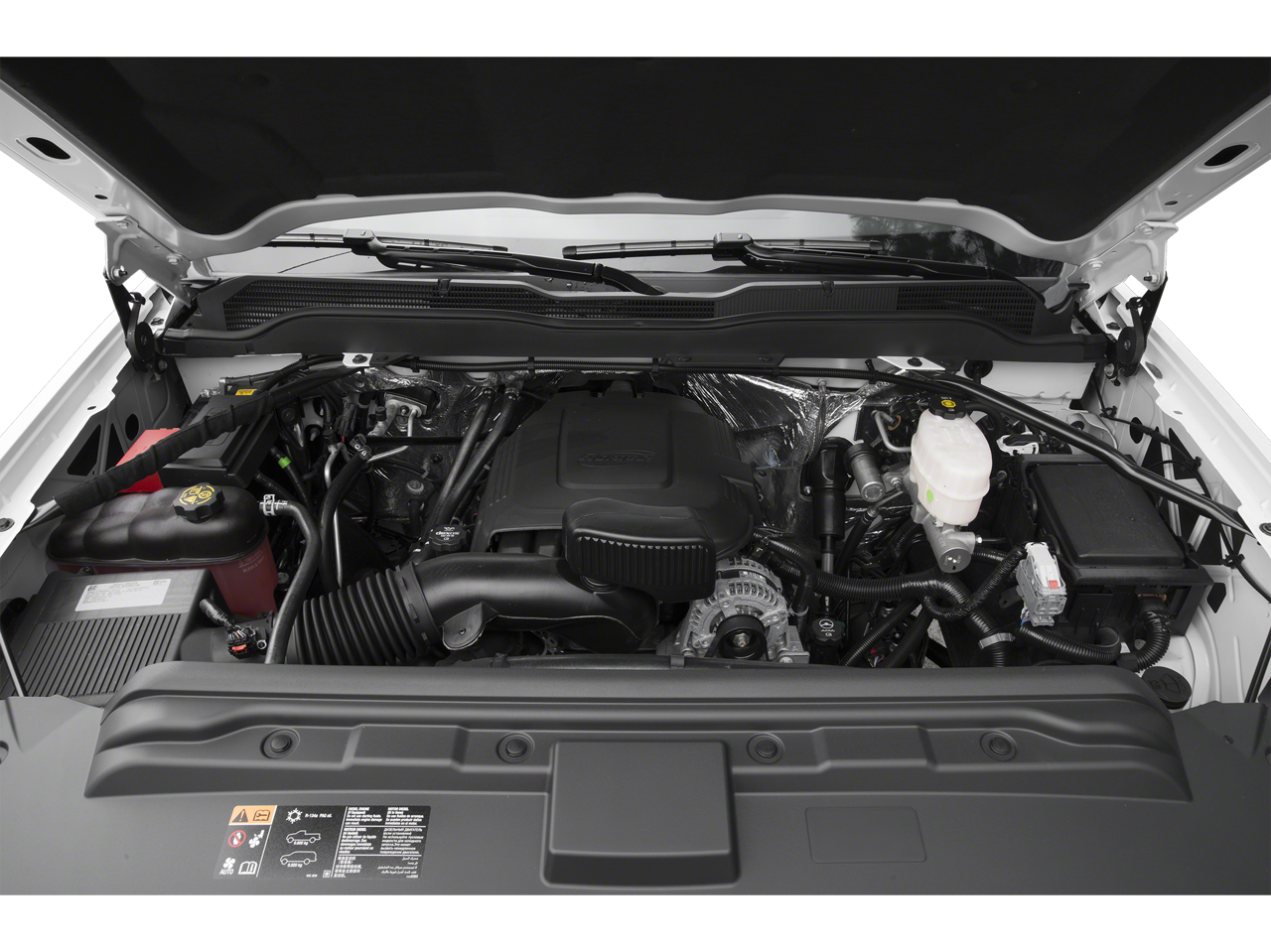

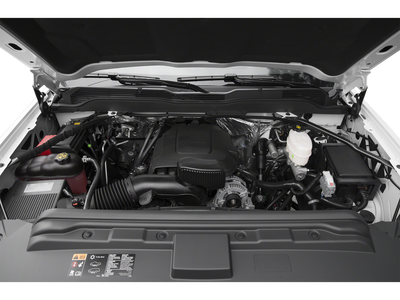

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm
• 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

WHEELS, 17" (43.2 CM) STEEL

• includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. (STD)

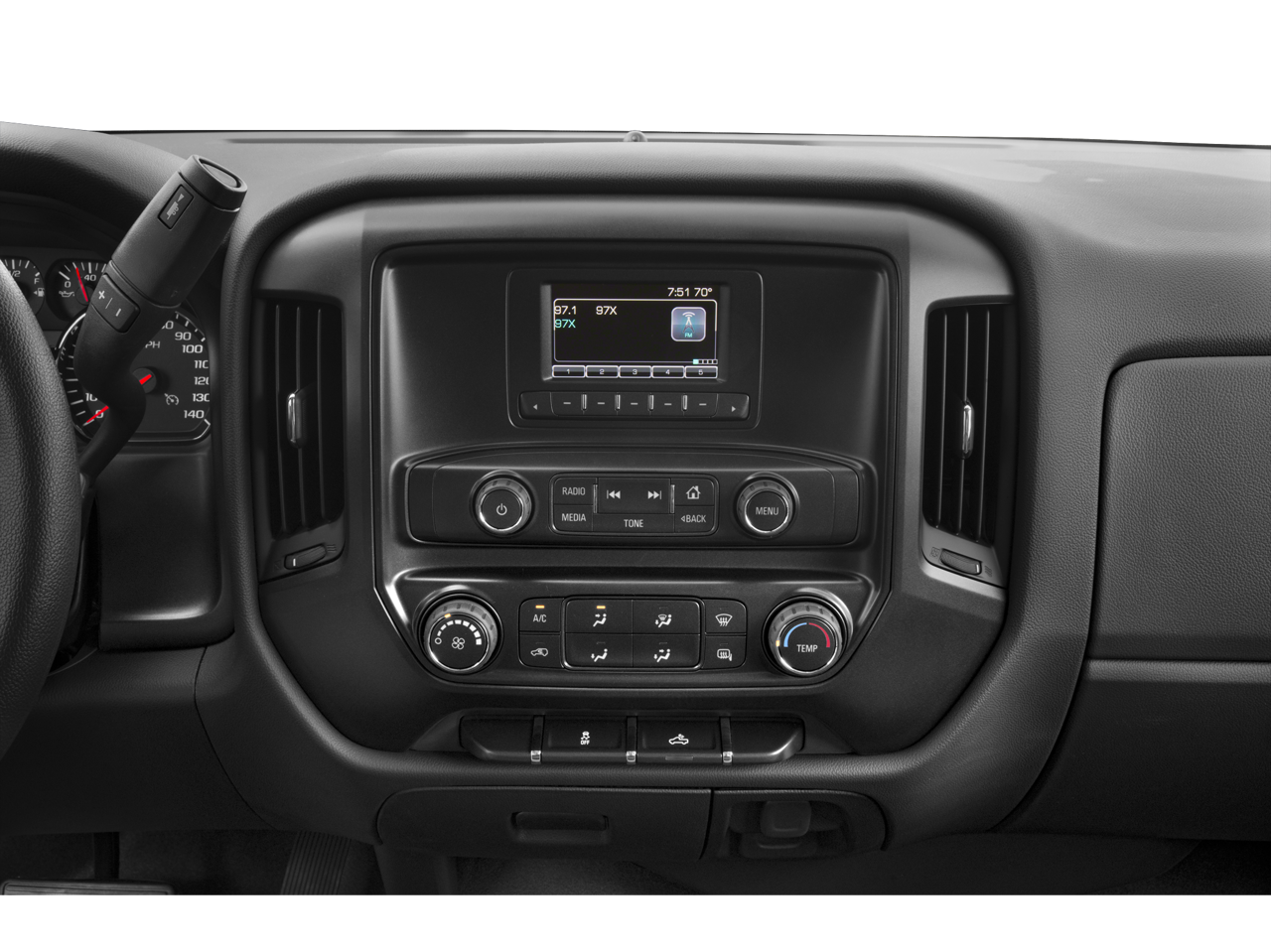

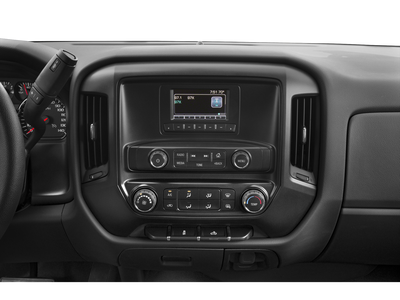

AUDIO SYSTEM, 4.2" DIAGONAL COLOR DISPLAY, AM/FM STEREO WITH USB PORTS

• auxiliary jack and SD card slot (STD)

SUSPENSION PACKAGE, STANDARD

• includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)

TRAILERING WIRING PROVISIONS, FOR CAMPER, FIFTH WHEEL AND GOOSENECK TRAILER

• is located at the rear of the pickup box attached to the rear frame cross member

• WT CONVENIENCE PACKAGE (Includes (AKO) tinted windows (KI4) 110V outlet (AQQ) Remote Keyless Entry (UVC) Rear Vision Camera and (DL8) outside heated power-adjustable mirrors.
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)
• REAR AXLE 4.10 RATIO
• TRAILERING EQUIPMENT Trailering hitch platform 2.5" with a 2.0" insert for HD 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps backup lamps right and left turn signals an electric brake lead battery and a ground The trailer connector also includes the 4-way for use on trailers without brakes - park brake/turn lamps (Includes (JL1) trailer brake controller.
• 2015 INTERIM PROCESSING CODE
• LED LIGHTING CARGO BOX WITH SWITCH ON CENTER SWITCH BANK
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp and includes (DD8) auto-dimming inside rearview mirror.)
• GVWR 9500 LBS. (4309 KG)
• POWER OUTLET 110-VOLT AC
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• TRAILER BRAKE CONTROLLER INTEGRATED
• WHEELS 17" (43.2 CM) STEEL includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. (STD)
• AUDIO SYSTEM 4.2" DIAGONAL COLOR DISPLAY AM/FM STEREO WITH USB PORTS auxiliary jack and SD card slot (STD)
• GLASS DEEP-TINTED
• DARK ASH WITH JET BLACK INTERIOR ACCENTS VINYL SEAT TRIM
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• SUMMIT WHITE
• SUSPENSION PACKAGE STANDARD includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)
• REMOTE KEYLESS ENTRY
• REAR VISION CAMERA with dynamic guide lines
• PAINT SOLID
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• TRAILERING WIRING PROVISIONS FOR CAMPER FIFTH WHEEL AND GOOSENECK TRAILER is located at the rear of the pickup box attached to the rear frame cross member
• TIRES LT245/75R17E ALL-SEASON BLACKWALL (STD)
• Locking/Limited Slip Differential
• Rear Wheel Drive
• Tow Hooks
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Split Bench Seat
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 21.10
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 61.0
• Tailgate Width (in): 62.2
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 41.26
• Front Bumper to Back of Cab (in): 150.10
• Ground Clearance, Front (in): 9.68
• Ground Clearance, Rear (in): 9.68
• Height, Overall (in): 78.27
• Length, Overall w/o rear bumper (in): 239.50
• Wheelbase (in): 153.70
• Width, Max w/o mirrors (in): 80.51
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Interior Dimensions
• Front Head Room (in): 42.80
• Front Hip Room (in): 60.73
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Passenger Capacity: 6
• Second Head Room (in): 40.50
• Second Hip Room (in): 60.24
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Steering
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 51.5
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: E63

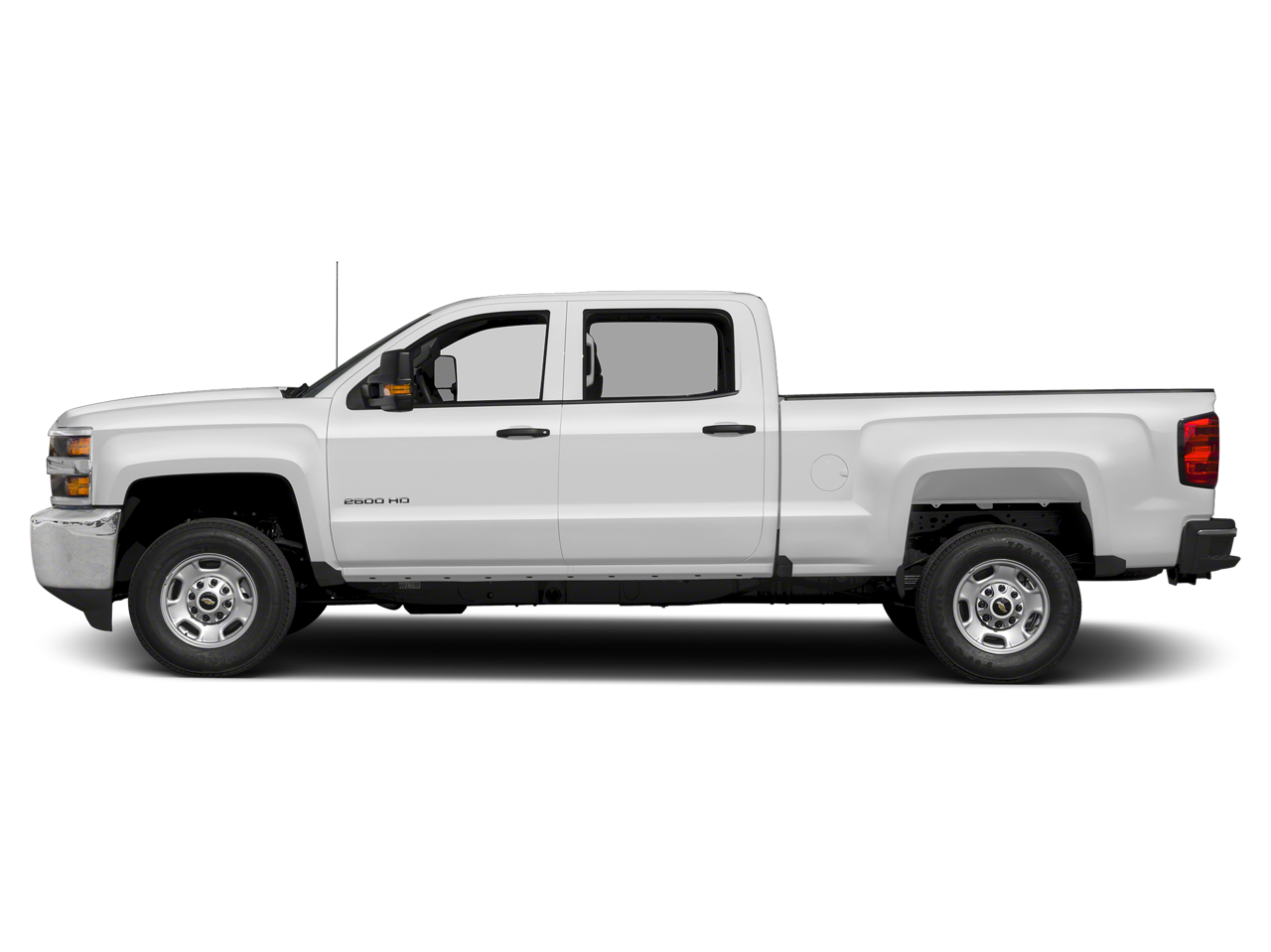

• Body Style: Crew Cab Pickup

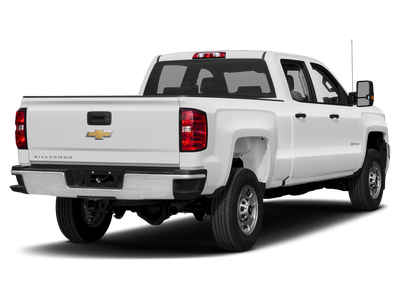

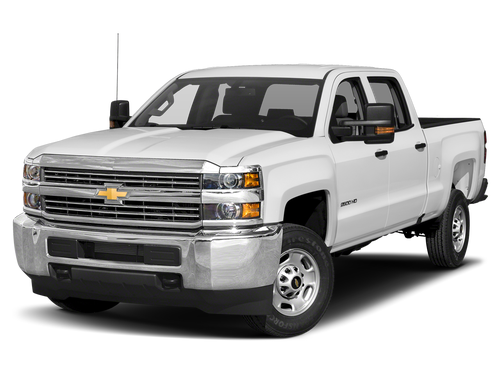

• Vehicle Name: Chevrolet Silverado 2500HD Built After Aug 14
• Suspension
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Rear: 4.10
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Stabilizer Bar Diameter - Front (in): 1.31
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Order Code: QHQ
• Front Tire Size: LT245/75R17E
• Rear Tire Order Code: QHQ
• Rear Tire Size: LT245/75R17E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3575
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14300
• Maximum Trailering Capacity (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Weight Information
• Curb Weight - Front (lbs): 3504
• Curb Weight - Rear (lbs): 2732
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Gross Combined Wt Rating (lbs): 20500
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 17 x 7.5
